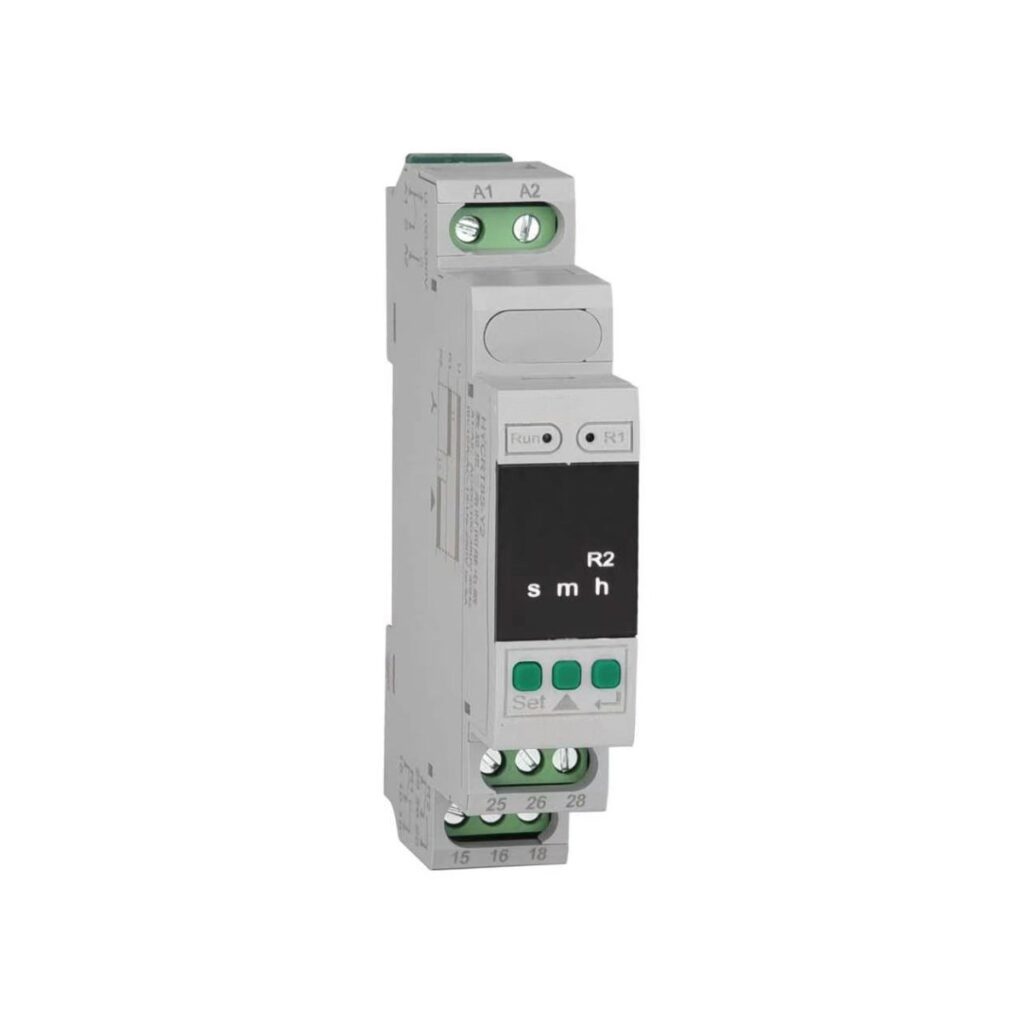

VL-TR-RT8(S)-Y — Star-Delta Motor Starting Time Relay
The star-delta time relay is designed for motor star-delta starting control, helping reduce starting current and ensure stable motor operation during startup.
It supports a wide working voltage range, with Y1 available for AC/DC 24–240V and Y2 available for AC/DC 100–380V. The relay features real-time LED status indication, optional digital display or rotary types, and a compact 18mm modular design for easy installation on standard 35mm DIN rails.
Key Features
- Dedicated star-delta (Y-Δ) motor starting control to reduce inrush current
- Y1 loop AC/DC 24–240V, Y2 loop AC/DC 100–380V (or fixed 220V/380V variants)
- Independent transition-time (t1) and delta-time (t2) settings
- Rotary or digital-display setting with real-time LED indication
- Compact 18mm width, standard 35mm DIN rail installation
Technical Specifications
| Parameter | Rotary (Y1/Y2) | Digital (S-Y1/S-Y2) |
|---|---|---|
| Function | Star-delta start delay | Star-delta start delay |
| Operating voltage Y1 | AC/DC 24–240V or fixed AC220V | AC/DC 24–240V or fixed AC220V |
| Operating voltage Y2 | AC/DC 100–380V or fixed AC380V | AC/DC 100–380V or fixed AC380V |
| t1 (star time) | 0.1s–10min, 4 gears | 0.1s–99min |
| t2 (transition time) | 0.1s–1s | 0.1s–9.9s |
| Output configuration | 2×SPDT | 2×SPDT |
| Output contact capacity | 10/16A (wide voltage) or 3/5A (fixed voltage), AC1-resistive | |
| Mechanical life | 1×10⁵ (resistive load, 1s on / 9s off) | |
| Environment | Working -10 to 55°C, ≤85% RH, ≤2000m altitude · Storage -20 to 75°C, no rain/snow/salt fog/corrosive gas |
Applications
Star-delta starting control for AC motors, reducing starting current and ensuring stable operation during motor startup.
