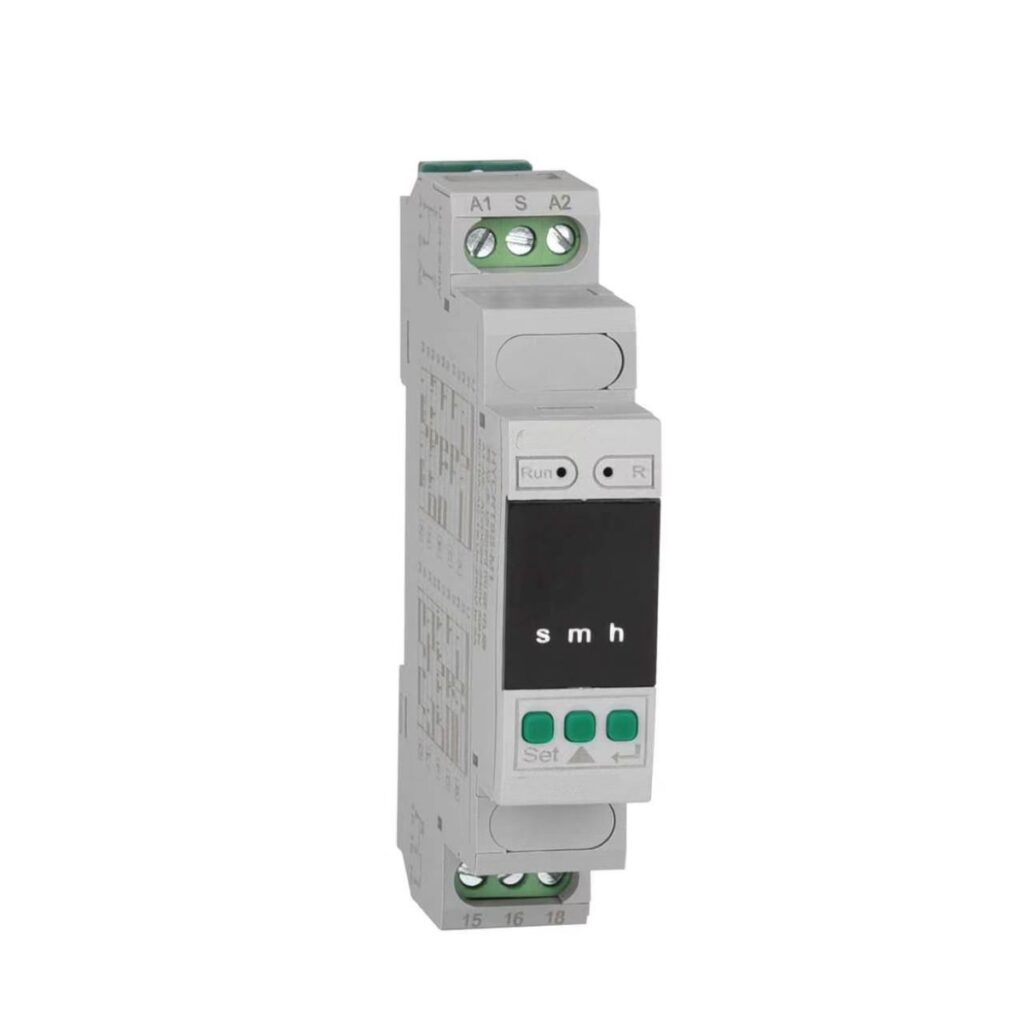

VL-TR-02 — Multi-Function Time Relay, Rotary & Digital Display
The time relay is a compact and adjustable time control device designed for delayed switching operations in electrical circuits. It can work together with other electrical equipment to control delay-on or delay-off functions according to different timing requirements.
It is suitable for industrial equipment, lighting systems, manufacturing automation, and other applications requiring reliable time control.
The series supports a wide working voltage range of AC/DC 24–240V, with adjustable timing functions, multiple delay modes, LED status indication, and optional digital display or rotary types. Its compact 18mm modular design supports standard 35mm DIN rail installation, making it easy to install in distribution panels and control cabinets.
| Model | M1/S-M1 | M2/S-M2 | M3/S-M3 |
|---|---|---|---|
| Output configuration | 1×SPDT | 2×SPDT | 1 delay + 1 instantaneous |
| Function | 10 functions switchable | ||
| Operating voltage | AC/DC 24–240V ±10% or AC220V ±20% | ||
| Setting method | Rotary adjustment (M) / Digital display, button adjustment (S-M) | ||
| Delay range | 0.1s–10 days (rotary) / 0.1s–99h (digital) | ||
| Delay accuracy | Basic <1%, mechanical <10%, repeat <0.5%, temp <0.05%/°C, voltage jump <1% | ||
| Reset time | < 500ms | ||
| Output contact capacity | 10/16A (24–240V) or 3/5A (fixed 220V), AC1-resistive | ||
| Mechanical life | 1×10⁷ (resistive load, 1s on / 9s off) | ||
| Environment / Protection | Working -10 to 55°C, ≤85% RH, ≤2000m altitude · Storage -20 to 75°C, no rain/snow/salt fog/corrosive gas · IP20 |
