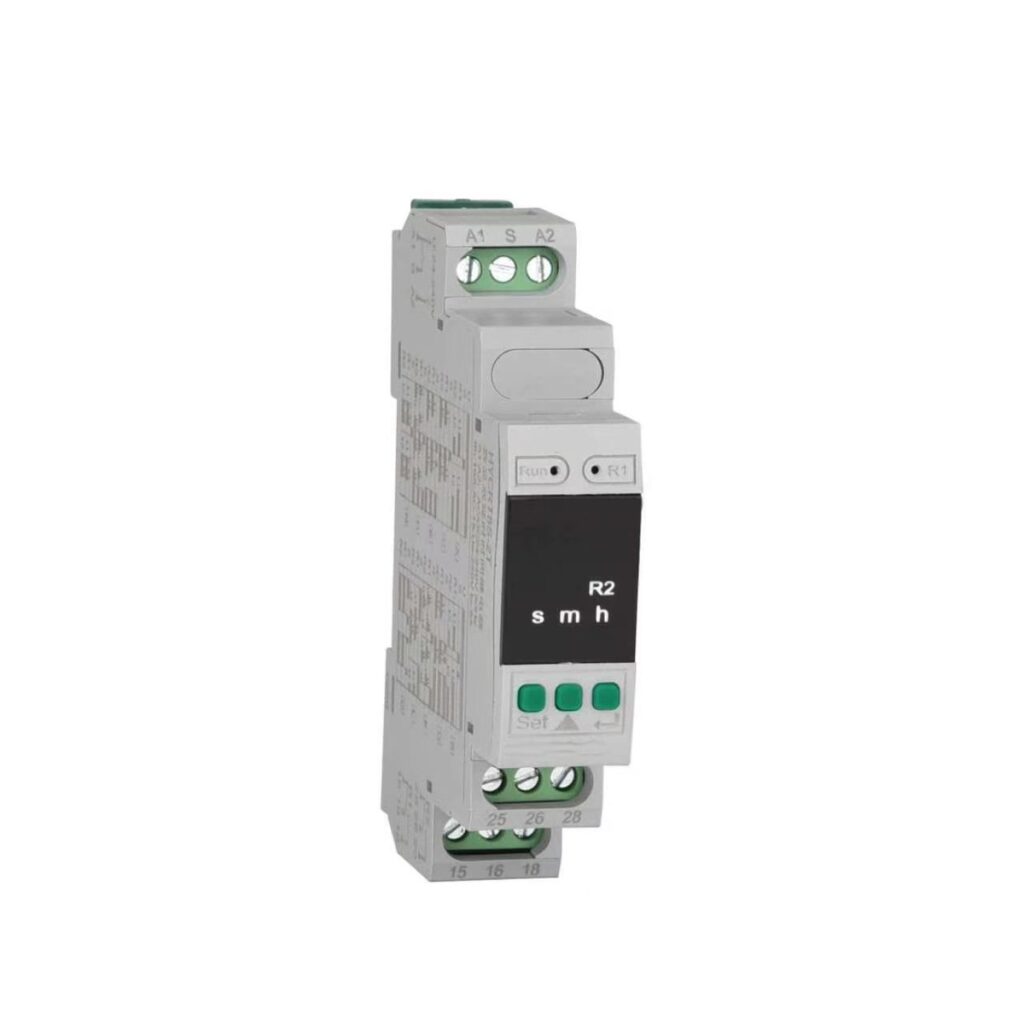

VL-TR-04 — Dual-Loop Staggered Delay Time Relay
The time relay is a programmable time control device designed to manage power-on and power-off delay operations in electrical circuits. It can work with other electrical equipment to separate control loops and enable staggered operation of terminal equipment.
It is suitable for industrial equipment, lighting systems, manufacturing automation, and other applications requiring precise time control.
The series supports a wide working voltage range of AC/DC 24–240V, LED status indication, adjustable delay time, S control or trigger functions, and optional digital display or knob types. With a compact 18mm design and standard 35mm DIN rail installation, it is easy to install in distribution panels and control cabinets.
.
| Model | 2TA (rotary) | 2TB (rotary) | S-2T (digital) |
|---|---|---|---|
| Function | Power-on delay | Delayed disconnection | 10 functions settable |
| Output configuration | 2×SPDT | 2×SPDT | 2×SPDT |
| Operating voltage | AC/DC 24–240V ±10% or AC220V ±20% | ||
| Delay range | 0.1s–10 days | 0.1s–10 days | 0.1s–99h |
| Delay accuracy | Basic <1%, mechanical <10% | Basic <1%, mechanical <10% | Basic <1% |
| Reset time | < 500ms | ||
| Output contact capacity | 10/16A (24–240V) or 3/5A (fixed 220V), AC1-resistive | ||
| Mechanical life | 1×10⁵ (resistive load, 1s on / 9s off) | ||
| Environment | Working -10 to 55°C, ≤85% RH, ≤2000m altitude · Storage -20 to 75°C, no rain/snow/salt fog/corrosive gas |
Electrical circuits needing two independently controlled or staggered delay loops within a single compact relay.
Technical documentation for this product (datasheet, type-test report, CAD drawing) is being finalized and will be published here shortly. Need it sooner? Contact us via the Request a Quote form and our team will send it directly.
Packaging details, minimum order quantity, lead time and HS code for this product are being finalized and will be published here shortly. Need this information sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
