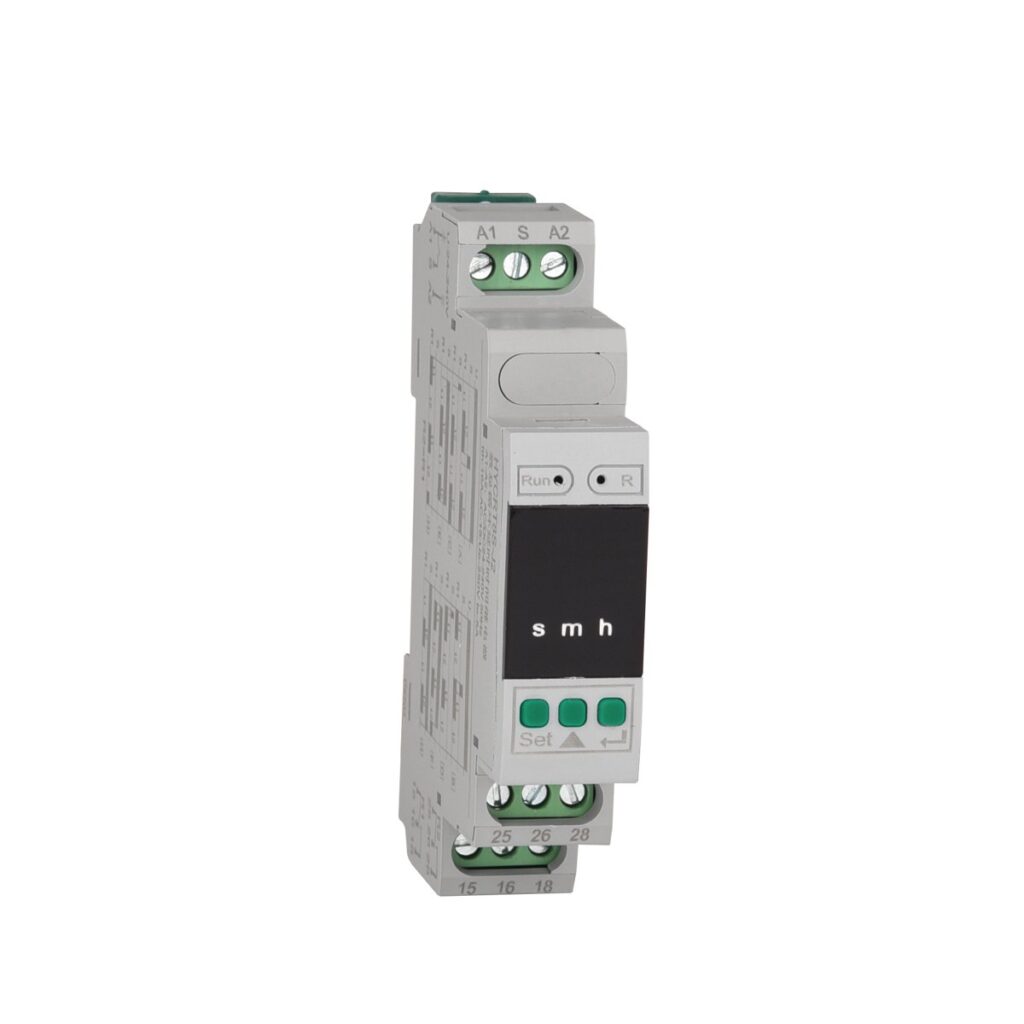

VL-TR-03 — Cycle-Control Time Relay, Rotary & Digital Display
The time relay is a programmable time control unit designed to manage delayed switching operations in electrical circuits. It can control delay-on or delay-off functions according to the required timing, ensuring reliable operation of terminal equipment.
It is suitable for industrial equipment, lighting systems, and manufacturing applications that require precise time control.
Key features include a wide working voltage range (AC/DC 24–240V), LED status indication, multiple delay modes with adjustable time, and optional digital or rotary display. Its compact 18mm width supports standard 35mm DIN rail installation for easy setup in control panels.
| Model | J1/S-J1 | J2/S-J2 | J3/S-J3 |
|---|---|---|---|
| Output configuration | 1×SPDT | 2×SPDT | 1 delay + 1 instantaneous |
| Function | 1 function cycle control (rotary) / 7 configurable loop functions (digital) | ||
| Operating voltage | AC/DC 24–240V ±10% or AC220V ±20% | ||
| Delay range | 0.1s–10 days (rotary) / 0.1s–99h (digital) | ||
| Delay accuracy | Basic <1%, mechanical <10%, repeat <0.5%, temp <0.05%/°C, voltage jump <1% | ||
| Reset time | < 500ms | ||
| Output contact capacity | 10/16A (24–240V) or 3/5A (fixed 220V), AC1-resistive | ||
| Mechanical life | 1×10⁵ (resistive load, 1s on / 9s off) | ||
| Environment / Protection | Working -10 to 55°C, ≤85% RH, ≤2000m altitude · Storage -20 to 75°C, no rain/snow/salt fog/corrosive gas · IP20 |
Industrial equipment and manufacturing applications requiring configurable cycle-control timing with either simple rotary or flexible digital-loop setup.
