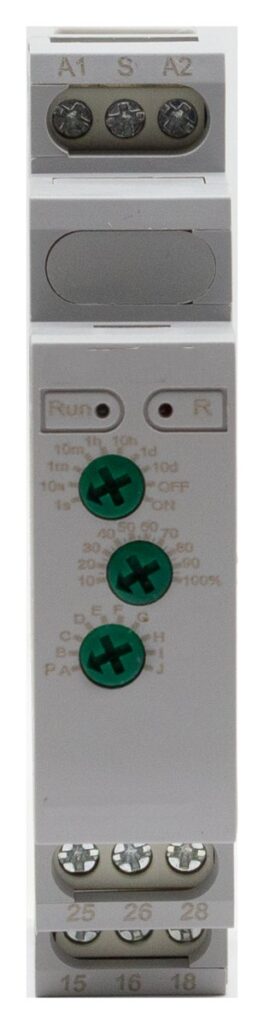

VL-TR-RT8(S)-PM — Multi-Mode Time Relay, S-Terminal Triggered
The time relay is a programmable time control device designed for delay-on and delay-off control in electrical circuits. It works with other electrical equipment to control the operating time of terminal devices according to required timing and functions.
It is widely used in industrial equipment, lighting control, manufacturing automation, and other applications requiring reliable time control.
The series supports a wide working voltage range of AC/DC 24–240V, real-time LED status indication, adjustable delay time, and 10 delay modes controlled or triggered by S. Digital display and knob types are available. With a compact 18mm design and standard 35mm DIN rail installation, it is easy to install in control panels and distribution cabinets.
Key Features
- 10 optional functions triggered via the S terminal
- Rotary type (PM1/PM2) or digital display type (S-PM1/S-PM2)
- Delay range 0.1s–10 days (rotary) or 0.1s–99h (digital)
- Real-time LED indication for working and relay state
- Compact 18mm width, standard 35mm DIN rail installation
Technical Specifications
| Model | PM1/S-PM1 | PM2/S-PM2 |
|---|---|---|
| Output configuration | 1×SPDT | 2×SPDT |
| Function | 10 functions optional (S-terminal triggered) | |
| Operating voltage | AC/DC 24–240V ±10% or AC220V ±20% | |
| Delay range | 0.1s–10 days (rotary) / 0.1s–99h (digital) | |
| Delay accuracy | Basic <1%, mechanical <10%, repeat <0.5%, temp <0.05%/°C, voltage jump <0.5% | |
| Reset time | < 500ms | |
| Output contact capacity | 10/16A (24–240V) or 3/5A (fixed 220V), AC1-resistive | |
| Mechanical life | 1×10⁵ (resistive load, 1s on / 9s off) | |
| Environment | Working -10 to 55°C, ≤85% RH, ≤2000m altitude · Storage -20 to 75°C, no rain/snow/salt fog/corrosive gas |
