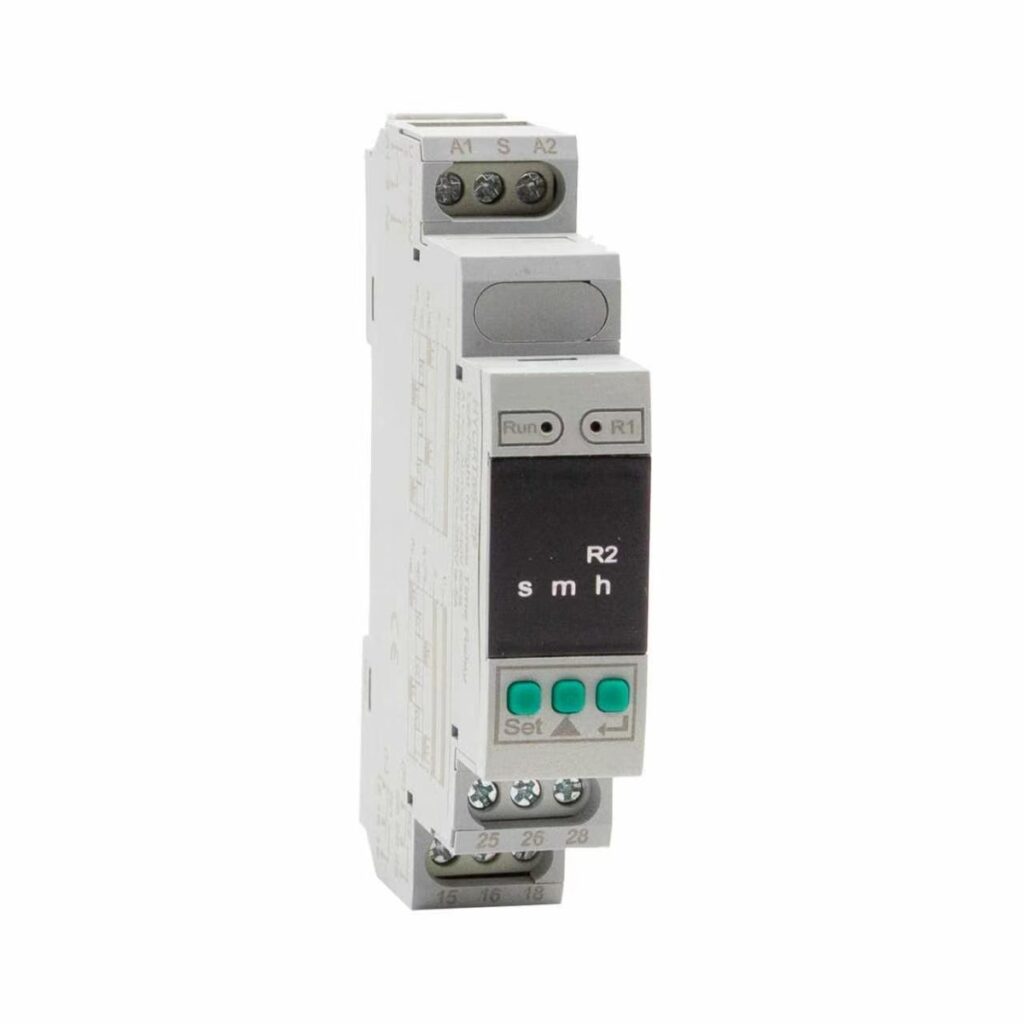

VL-TR-07 — Forward / Reverse Auto-Cycle Time Relay
The forward and reverse automatic cycle controller is a programmable time control device that alternates output contacts according to set timing, enabling precise control of electrical equipment operation and terminal device working time.
It is ideal for electrical automation equipment, street lighting, AC motor control, and other applications requiring reliable time management.
Key features include a wide working voltage range (AC/DC 24–240V), real-time LED status indication, adjustable delay range, and optional digital display or knob types. Its compact 18mm width design supports standard 35mm DIN rail installation, making it easy to integrate into control panels and distribution cabinets.
| Parameter | Rotary (JZF) | Digital (S-JZF) |
|---|---|---|
| Function | Control the load to start / shut down in turn | Control the load to start / shut down in turn |
| Output configuration | 2×SPDT | 2×SPDT |
| Operating voltage | AC/DC 24–240V ±10% | AC/DC 24–240V ±10% |
| Delay range | 0.1s–10 days | 0.1s–99h |
| Delay accuracy | Mechanical <10%, basic error per spec | Basic <1% |
| Reset time | < 500ms | |
| Output contact capacity | 10/16A, AC1-resistive | |
| Mechanical life | 1×10⁵ (resistive load, 1s on / 9s off) | |
| Environment | Working -10 to 55°C, ≤85% RH, ≤2000m altitude · Storage -20 to 75°C, no rain/snow/salt fog/corrosive gas |
