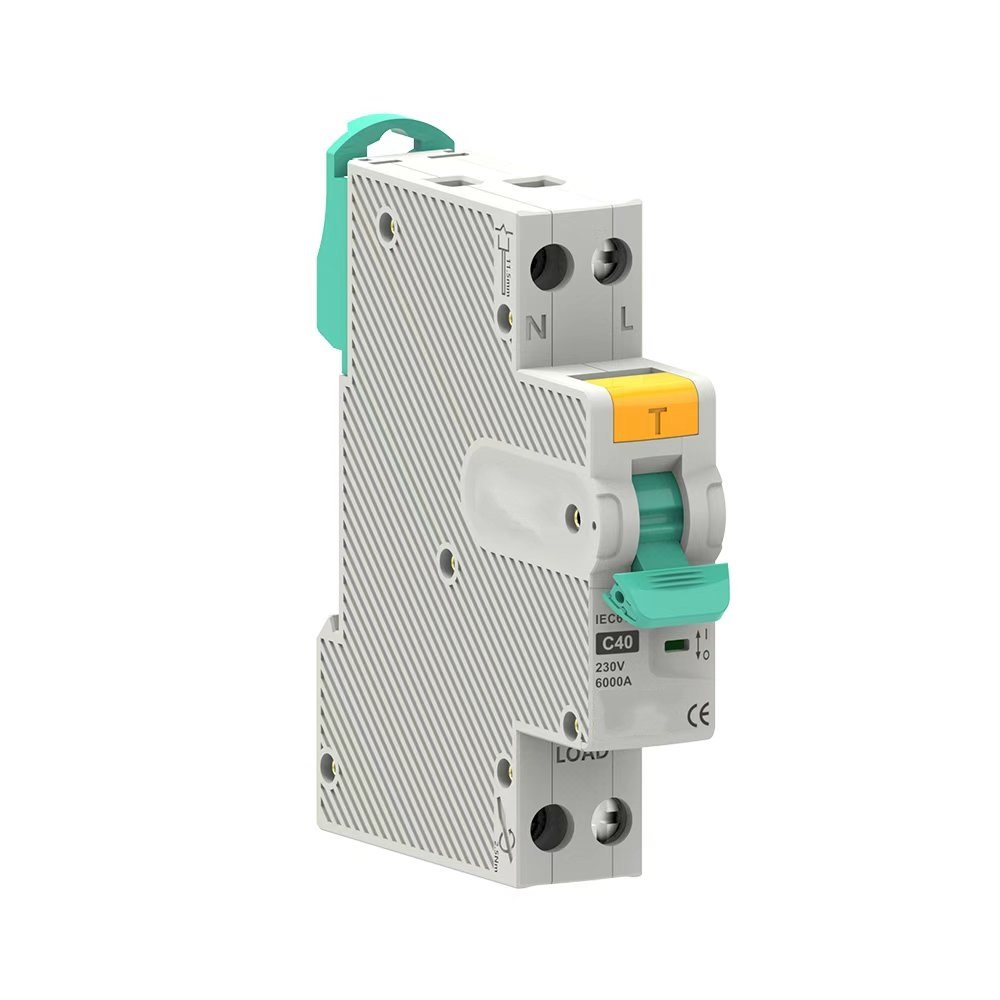

VL-RCBO-B8L-40 — Residential RCBO, 230V/40A
HYCB8L-40 residual current circuit breakers with overcurrent protection are suitable for single-phase residential circuits with AC 50/60Hz and a rated voltage of 230V.
They provide leakage protection, overload protection, overcurrent protection, and short-circuit protection for residential electrical circuits. The product features a compact size and high breaking capacity of 6kA. The neutral and live wires are disconnected simultaneously, and leakage protection remains effective even when the live wire is reversed.
The product complies with GB/T 16917.1 and IEC 61009-1 standards.
Key Features
- Simultaneous live + neutral disconnection for single-phase residential circuits
- Leakage protection remains effective even if the live wire is reversed
- Compact size with 6kA breaking capacity
- Type C tripping curve for general residential loads
- Mechanical life 20,000 operations, electrical life 10,000
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated current In | 10 / 16 / 20 / 25 / 32 / 40A |
| Rated voltage Ue | 230V AC |
| Working frequency | 50/60Hz |
| Tripping curve | Type C |
| Breaking capacity | 6kA |
| Poles | 1P+N |
| Mechanical life | 20,000 times |
| Electrical life | 10,000 times |
| Operating ambient temperature | -35°C to +70°C |
| Pollution level | Level 2 |
| Protection class | IP20 |
| Standard | GB/T 16917.1, IEC 61009-1 |
Applications
Leakage, overload, overcurrent and short-circuit protection for single-phase residential electrical circuits.
