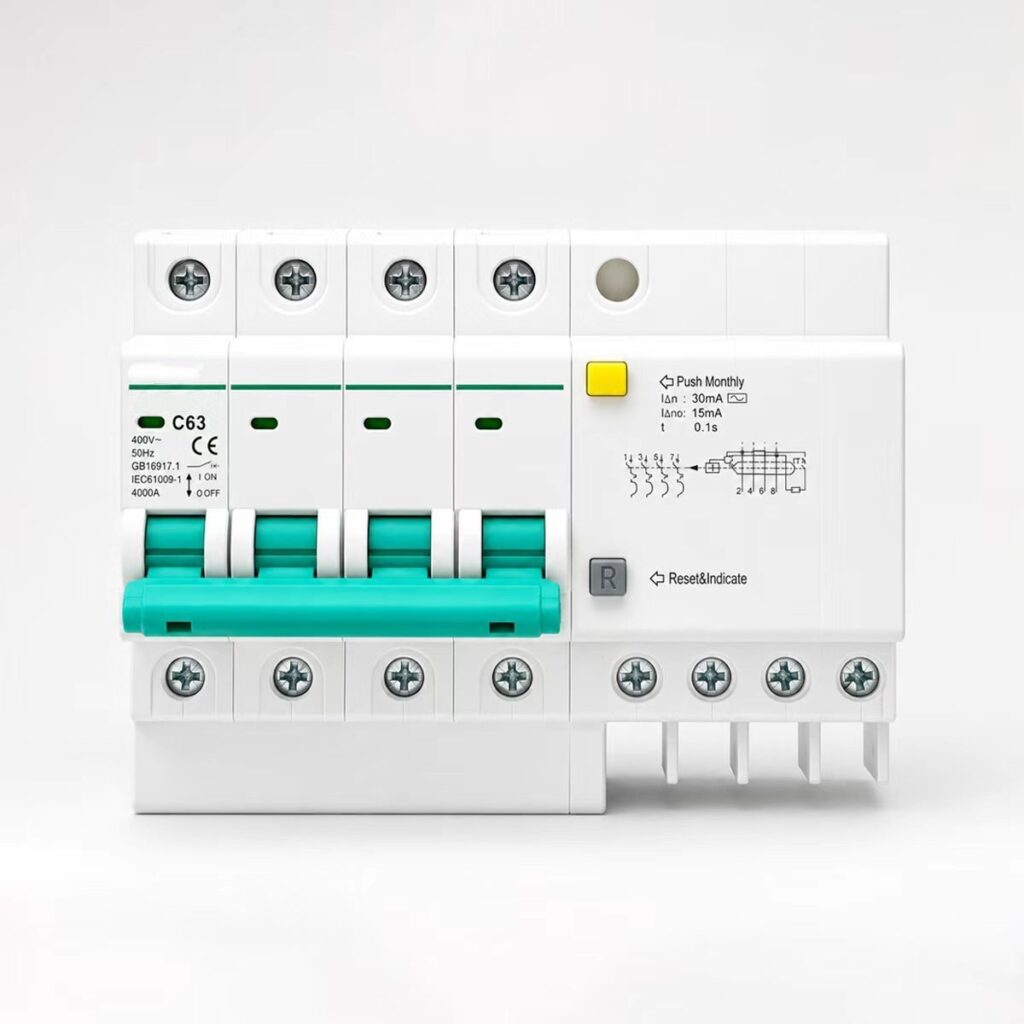

VL-RCBO-03 — Earth Leakage Circuit Breaker, up to 230/400V, 63A
VL-RCBO-03 Series earth leakage circuit breakers are mainly suitable for AC 50/60Hz circuits, with rated voltage up to 230V/400V and rated current up to 63A.
They provide leakage and electric shock protection, as well as overload and short-circuit protection. Overvoltage and undervoltage protection functions can also be added as required.
The series is mainly used for the protection of building lighting and power distribution systems.
| Parameter | Specification |
|---|---|
| Rated current In | 1 / 2 / 3 / 4 / 6 / 10 / 16 / 20 / 25 / 32 / 40 / 50 / 63A |
| Rated voltage Ue | 230V / 400V AC |
| Working frequency | 50/60Hz |
| Tripping curve | Type C |
| Breaking capacity | 4500A |
| Poles | 1P+N |
| Mechanical life | 20,000 times |
| Electrical life | 10,000 times |
| Operating ambient temperature | -35°C to +70°C |
| Pollution level / Protection class | Level 2 / IP20 |
Protection of building lighting and power distribution systems against earth leakage, overload and short-circuit faults; optional over/under-voltage protection for sensitive circuits.
Technical documentation for this product (datasheet, type-test report, CAD drawing) is being finalized and will be published here shortly. Need it sooner? Contact us via the Request a Quote form and our team will send it directly.
Packaging details, minimum order quantity, lead time and HS code for this product are being finalized and will be published here shortly. Need this information sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
