WiFi Smart Circuit Breaker, 63A 2P

VL-WCB-114 WiFi Smart Circuit Breaker, 63A 2P

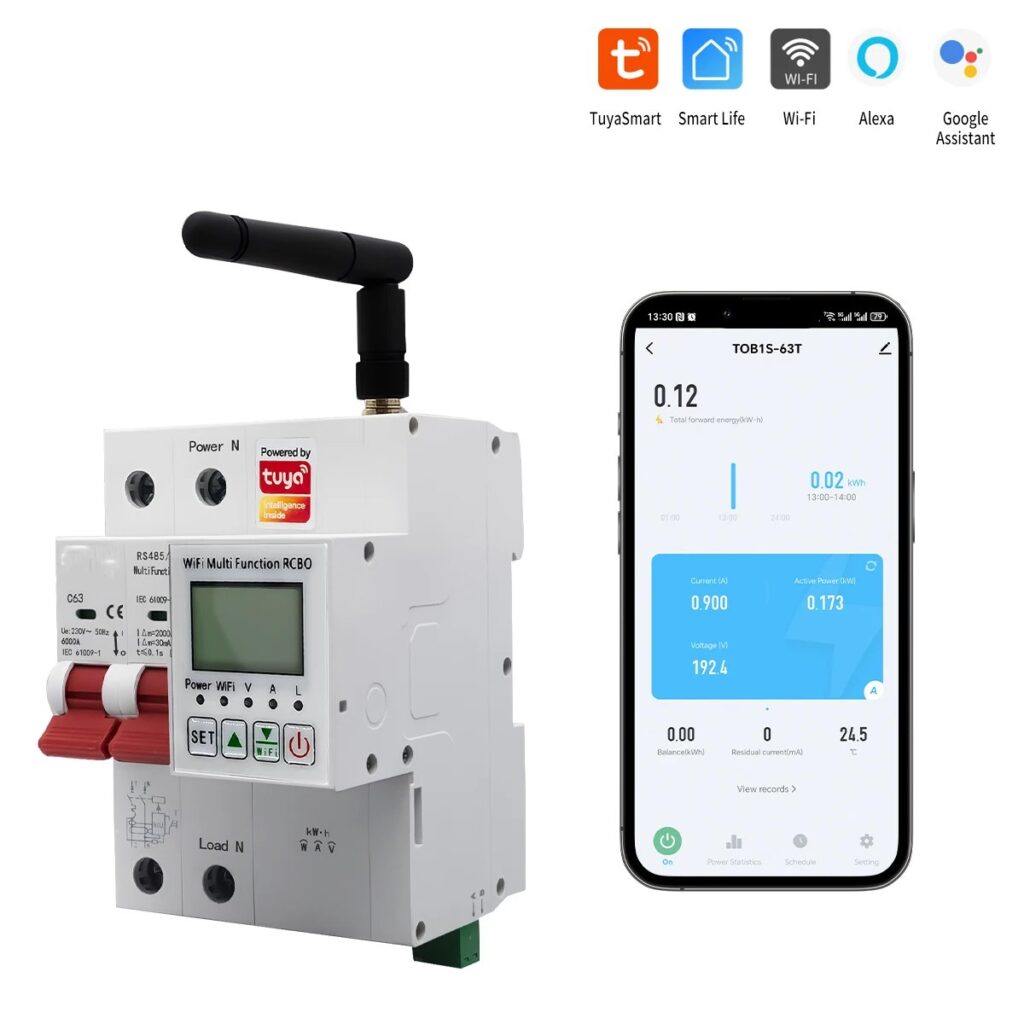

The WiFi smart circuit breaker combines branch-circuit overcurrent protection with remote on/off control and energy monitoring through a smartphone app and voice assistants.

Key Features

• TOB1S-63T 2P 230V AC 1-63A.
• RS485 control + WIFI control.
• Over voltage proteciton 250V-300V (adjustable) (default: 275V).
• Over current protection 1-63A (adjustable) (default: 63A).
• High temperature alarm 40-150±(adjustable) (default: 80±).
• Insufficient balance warning 1-65535kWh(adjustable) (default: 10kWh).
• Ampere±Voltage±Active power±Temperature±Active energy.
• Short current and over current protection.

Technical Specifications

Applications

Ideal for smart panels, rental units and remote sites where circuit control and consumption tracking are wanted from a phone.

Downloads

Datasheet, type-test report and CAD drawing are being finalized and will be published here shortly. Need them sooner? Request them via the quote form and our team will send them directly.

Packaging & Logistics

Packaging, MOQ, lead time and HS code are being finalized. Need this sooner? Contact us via the Request a Quote form.
