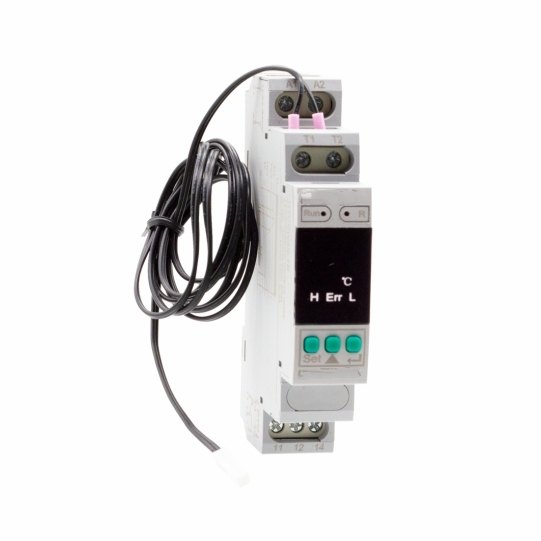

VL-MR-03 — Digital Temperature Control Relay
The temperature control relay is a precision instrument for measuring and controlling temperature. It allows users to set the desired temperature range and control mode, making it ideal for maintaining constant temperatures in various applications.
It is suitable for industrial control, exhaust systems, electric heating equipment, warehouses, and other environments requiring reliable temperature management.
Key features include a wide working voltage range (AC/DC 24–240V), PTC platinum resistance sensing with delay and open/short circuit detection, real-time LED status indication, and temperature monitoring from -20°C to 80°C. Its compact 18mm width supports standard 35mm DIN rail installation, ensuring easy integration into control panels and cabinets.
| Model | RW8S-TR | RW8S-HC |
|---|---|---|
| Function | Temperature range monitoring control | Heating/cooling mode monitoring control |
| Output configuration | 1×SPDT | 1×SPDT |
| Operating voltage | AC/DC 24–240V ±10% | |
| Setting method | 3-digit digital display, button adjustment, 1°C step | |
| Signal input | PT100 thermal resistance | |
| Adjustment range | -20°C to +80°C, resolution 0.1 or 1°C | |
| Hysteresis (lag) | 0.5–9.9°C | |
| Measurement error | ± (2.0% FS + 1 digit) | |
| Delay range | 0.5–19.9s | |
| Reset time | < 500ms | |
| Contact capacity | 10(16)A, AC1-resistive | |
| Mechanical life | 1×10⁵ (resistive load, 1s on / 9s off) | |
| Atmospheric pressure | 86–106kPa | |
| Protection class | IP20 |
Constant-temperature control for industrial control panels, exhaust systems, electric heating equipment and warehouses requiring PT100-based temperature monitoring or heating/cooling switching.
Technical documentation for this product (datasheet, type-test report, CAD drawing) is being finalized and will be published here shortly. Need it sooner? Contact us via the Request a Quote form and our team will send it directly.
Packaging details, minimum order quantity, lead time and HS code for this product are being finalized and will be published here shortly. Need this information sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
