Surge Protective Device, 3P

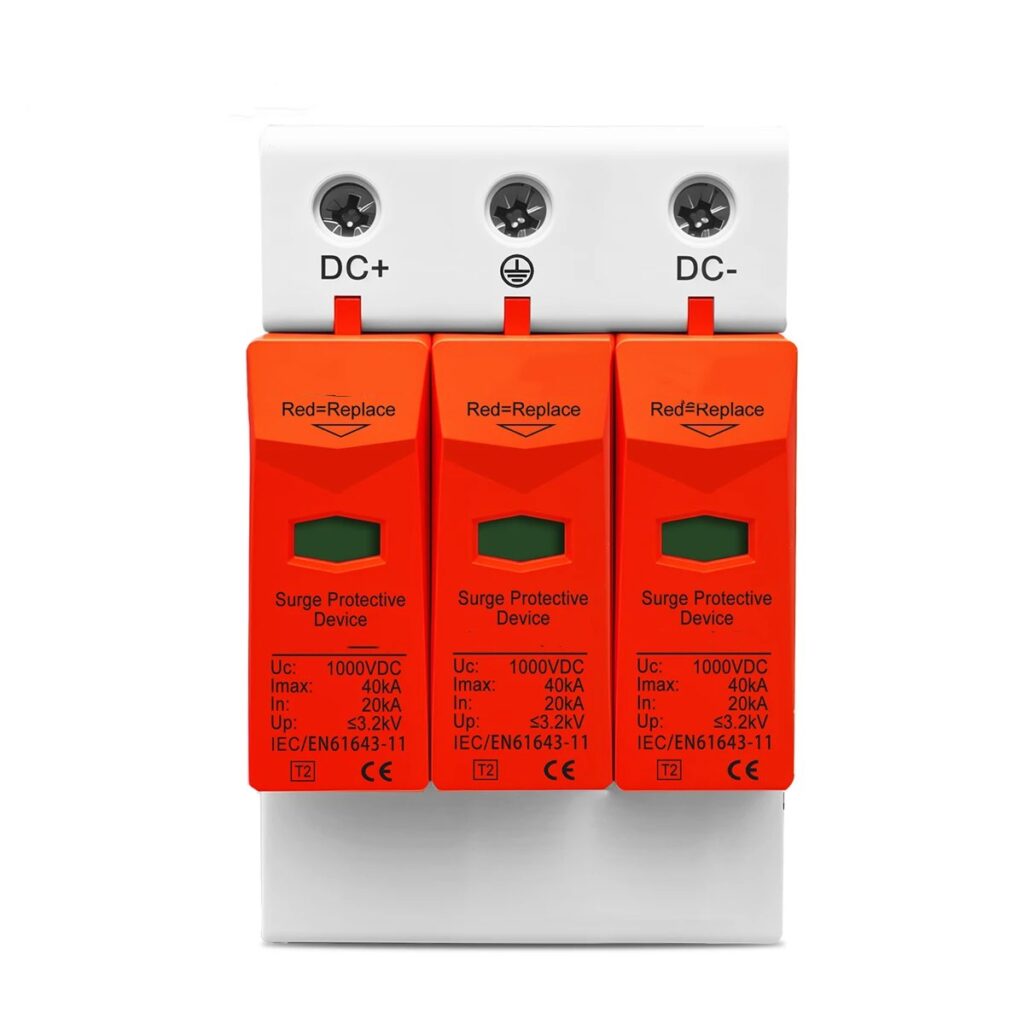

VL-SPD-120 Surge Protective Device, 3P

The surge protective device diverts transient overvoltages caused by lightning and switching into the earthing system, protecting downstream equipment from surges.

Key Features

• TOMZN 3P DC 1000V/1200V/1500V SPD.
• 10-20kA/20-40kA.
• TOV1-PV is applied low voltage standard IEC/EN 61643-11 to protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage.
• It has advantages of large discharge current, fast respond time and low residual voltage.
• High discharge capacity, quick response, pluggable.
• Fast response time, din rail installation.
• Double thermal disconnection devices, provide more reliable protection.

Technical Specifications

Applications

Installed at incoming and subsystem boundaries to limit surge stress on sensitive electronics and control gear.

Downloads

Datasheet, type-test report and CAD drawing are being finalized and will be published here shortly. Need them sooner? Request them via the quote form and our team will send them directly.

Packaging & Logistics

Packaging, MOQ, lead time and HS code are being finalized. Need this sooner? Contact us via the Request a Quote form.
