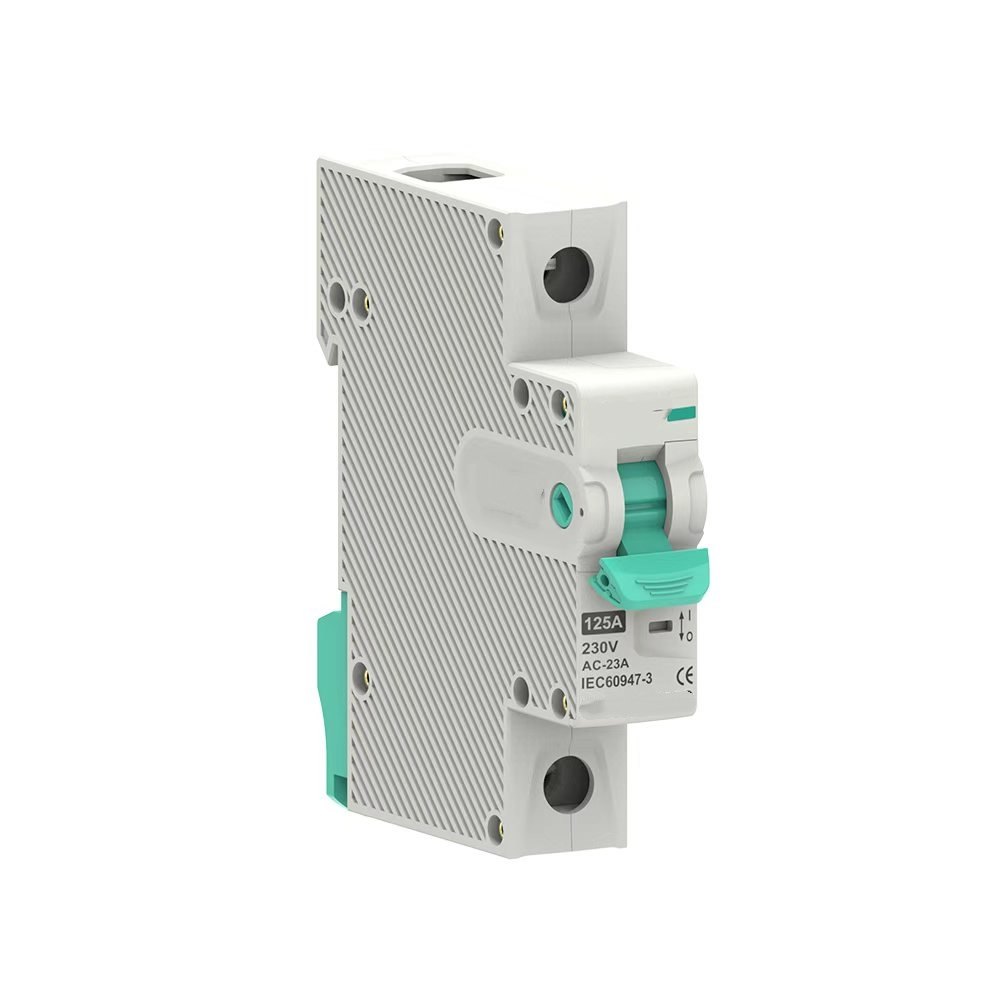

VOLTALUME VL-LBS-04 Series Isolator Switch — Compact main-switch isolation for terminal combination appliances.
The VOLTALUME VL-LBS-04 is a newly designed isolator switch with high dynamic and thermal stability, engineered as the main switch in terminal combination appliances. Suitable for power distribution and control circuits at AC 50/60Hz up to 400V, it also controls motors, low-power electrical appliances, and lighting systems — widely applied across industrial and mining enterprises, high-rise buildings, commercial facilities, and residential installations.
| Parameter | Value |
|---|---|
| Rated current (In) | 32A / 40A / 50A / 63A / 80A / 100A / 125A |
| Rated voltage (Ue) | 230V AC / 400V AC |
| Working frequency | 50/60Hz |
| Use category | AC-22 |
| Rated short-time withstand current Icw | 1.5kA / 1s |
| Rated short-circuit making capacity Icm (peak) | 2.5kA |
| Poles | 1P / 2P / 3P / 4P |
| Mechanical life | 20,000 times |
| Electrical life | 10,000 times |
| Operating ambient temperature | -35°C to +70°C |
| Pollution level | Level 2 |
| Protection class | IP20 |
Main switch in terminal combination appliances; motor control, low-power appliance and lighting circuits; industrial/mining enterprises, high-rise buildings, commercial and residential installations.
Technical documentation for this product (datasheet, type-test report, CAD drawing) is being finalized and will be published here shortly. Need it sooner? Contact us via the Request a Quote form and our team will send it directly.
Packaging details, minimum order quantity, lead time and HS code for this product are being finalized and will be published here shortly. Need this information sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
