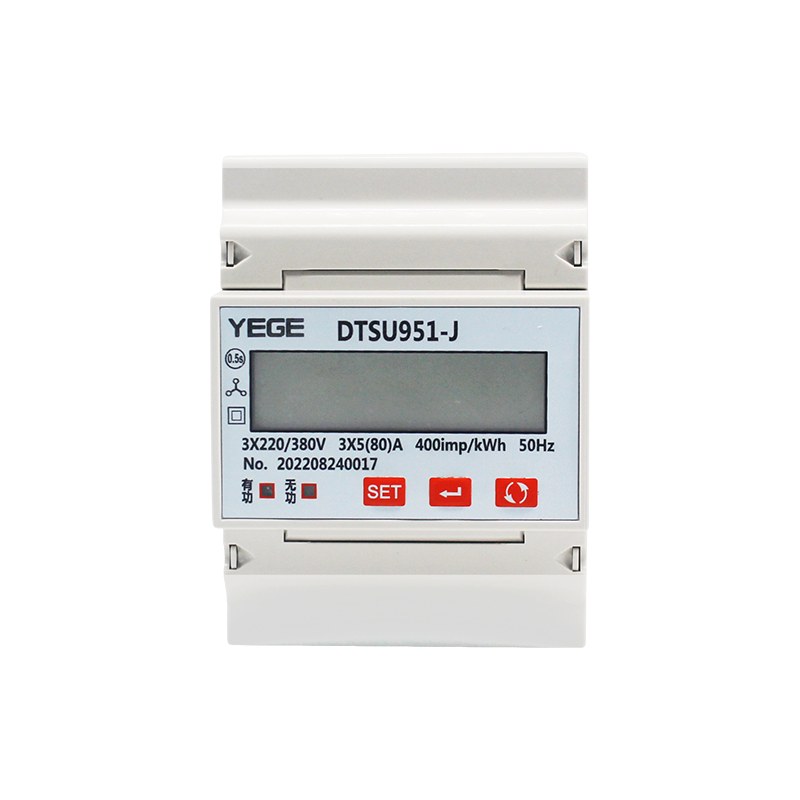

VL-JQ-DTSU951-J Three-Phase DIN-Rail Multifunction Meter (7P, RS-485)
The electronic energy meter continuously measures active energy with high accuracy, providing a dependable basis for billing, sub-metering and energy management.
| Parameter | Specification |
|---|---|
| Meter Type / Poles | Three-phase, 4-wire |
| Reference Voltage | 3x220/380 V AC, 50/60 Hz |
| Current Range | 3x1.5(6) A - 3x10(100) A |
| Accuracy Class | Class 0.5S (active energy) |
| Communication | RS-485 (Modbus) |
| Display | Backlit LCD |
| Metering | Bidirectional (import/export) & reactive energy |
| Mounting | 35 mm DIN rail, 7 modules |
| Standard | IEC (compatible) |
Three-phase DIN-rail metering with import/export tracking for solar self-consumption and cost allocation.
Datasheet, type-test report and wiring diagram are being finalized and will be published here shortly. Need them sooner? Request them via the quote form and our team will send them directly.
Packaging, MOQ, lead time and HS code are being finalized. Need this sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
