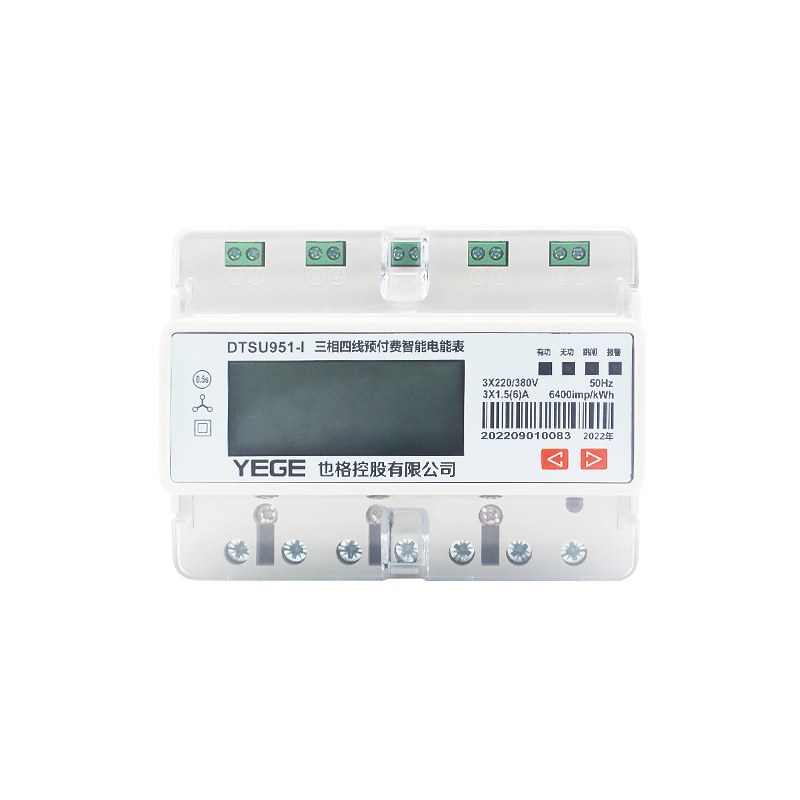

VL-JQ-DTSU951-I-P Three-Phase DIN-Rail Prepaid Meter (RS-485)
The prepaid energy meter measures consumption and controls supply on a pay-as-you-go basis, automatically disconnecting the load when credit is exhausted and reconnecting on recharge.
| Parameter | Specification |
|---|---|
| Meter Type / Poles | Three-phase, 4-wire |
| Reference Voltage | 3x220/380 V AC, 50/60 Hz |
| Current Range | 3x1.5(6) A - 3x10(100) A |
| Accuracy Class | Class 0.5S (active energy) |
| Communication | RS-485 (Modbus) |
| Display | Backlit LCD |
| Payment | 4G / network prepayment |
| Mounting | 35 mm DIN rail |
| Standard | IEC (compatible) |
Networked three-phase prepayment and AMR managed from a central billing platform.
Datasheet, type-test report and wiring diagram are being finalized and will be published here shortly. Need them sooner? Request them via the quote form and our team will send them directly.
Packaging, MOQ, lead time and HS code are being finalized. Need this sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
