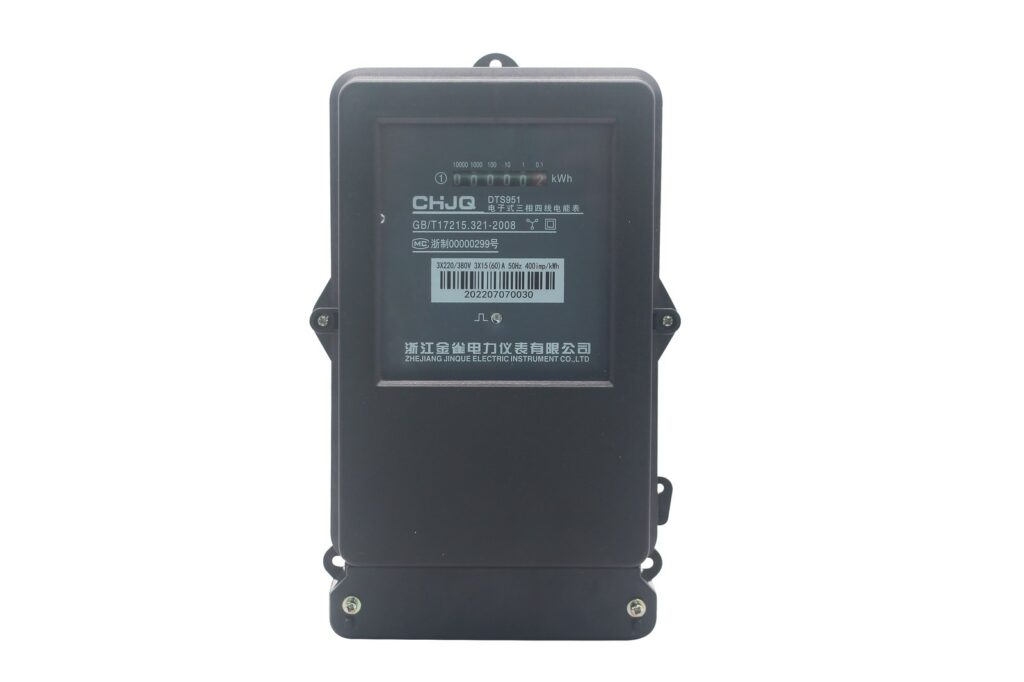

VL-JQ-DTS951-1 Three-Phase Multifunction kWh Meter (RS-485)
The electronic energy meter continuously measures active energy with high accuracy, providing a dependable basis for billing, sub-metering and energy management.
| Parameter | Specification |
|---|---|
| Meter Type / Poles | Three-phase, 4-wire |
| Reference Voltage | 3x220/380 V AC, 50/60 Hz |
| Current Range | 3x1.5(6) A - 3x10(100) A |
| Accuracy Class | Class 0.5S (active energy) |
| Communication | RS-485 (Modbus) |
| Display | Backlit LCD |
| Prepayment | Optional 4G / network prepayment |
| Type | Static multifunction |
| Standard | IEC (compatible) |
Remote billing and energy management of three-phase loads in commercial and industrial sites.
Datasheet, type-test report and wiring diagram are being finalized and will be published here shortly. Need them sooner? Request them via the quote form and our team will send them directly.
Packaging, MOQ, lead time and HS code are being finalized. Need this sooner? Contact us via the Request a Quote form.
