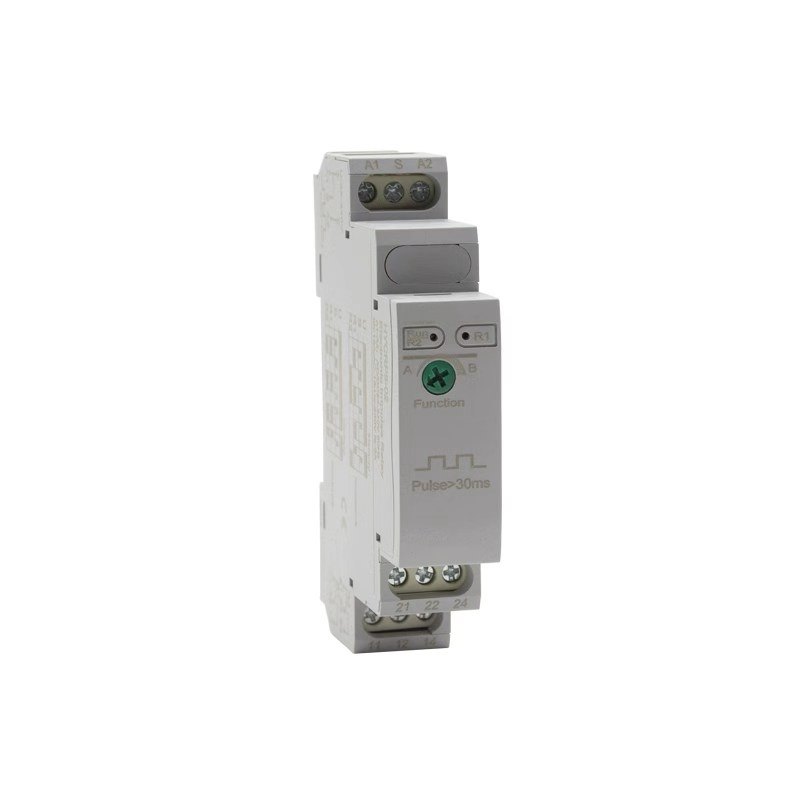

VL-EIR-RP8 — Multi-Location Impulse Switch Relay
This multi-position switch relay allows control of electrical equipment from multiple locations, such as replacing traditional multi-way lighting switches, with simple wiring and reliable operation.
It is suitable for industrial equipment, lighting systems, and other applications requiring flexible control.
Key features include a wide working voltage range (AC/DC 24–240V), real-time LED status indication, and a power-off memory function. Its compact 18mm width design supports standard 35mm DIN rail installation, making it easy to integrate into control panels and distribution cabinets.
Key Features
- Impulse signal toggles the output contact state — replaces traditional multi-way switches
- 1×SPDT (RP8-01) or 2×SPDT with rotary function switching (RP8-02)
- Simple wiring for multi-location control of lighting or equipment
- Power-off memory retains the last switching state
- Mechanical life 1×10⁷ operations
Technical Specifications
| Parameter | RP8-01 | RP8-02 |
|---|---|---|
| Output contact | 1×SPDT | 2×SPDT |
| Operating voltage | AC/DC 24–240V ±10% | AC/DC 24–240V ±10% |
| Setting method | — | Rotary function switching |
| Control terminal | A1-S | A1-S |
| Minimum control signal width | 30ms | 30ms |
| Reset time | < 500ms | < 500ms |
| Output contact capacity | 10/16A, AC1-resistive | |
| Mechanical life | 1×10⁷ (resistive load, 1s on / 9s off) | |
| Environment | Working -10 to 55°C, ≤85% RH, ≤2000m · Storage -20 to 75°C |
Applications
Multi-location switching for lighting and industrial equipment control — a direct, simply-wired replacement for traditional multi-way switches, with power-off memory.
