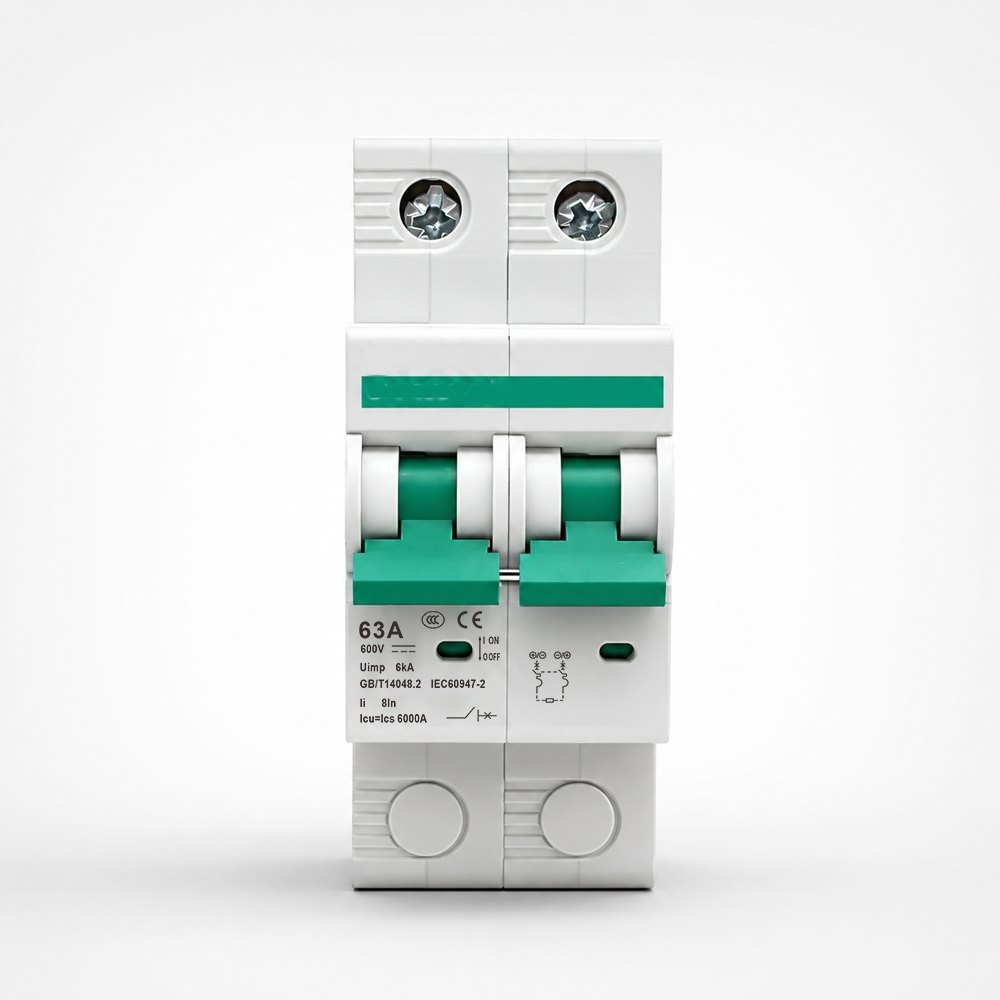

VL-DCB-B7-63PV — Arc-Limiting DC Circuit Breaker, Non-Polar, up to 1200V
The HYCB7-63PV Series DC miniature circuit breakers adopt advanced arc ignition and arc extinguishing technology, current-limiting technology, and a fast opening and closing mechanism, enabling quick and reliable breaking of short-circuit current, rated operating current, and critical current in DC systems.
The series adopts a non-polar wiring design, making installation more convenient for users and helping prevent accidents caused by incorrect positive and negative polarity connections in DC systems.
Key Features
- Advanced arc-ignition / arc-extinguishing and current-limiting technology
- Fast opening and closing mechanism for reliable short-circuit breaking
- Non-polar wiring design prevents reversed-polarity accidents
- Rated voltage options up to DC 1200V
- 1P–4P configurations, Type C and Type D tripping curves
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated current In | 6 / 10 / 16 / 20 / 25 / 32 / 40 / 50 / 63A |
| Rated voltage Ue | 300V / 600V / 900V / 1200V DC |
| Working frequency | 50/60Hz |
| Tripping curve | Type C, Type D |
| Breaking capacity | 6kA |
| Poles | 1P / 2P / 3P / 4P |
| Mechanical / Electrical life | 10,000 / 1,000 |
| Operating ambient temperature | -35°C to +70°C |
| Pollution level / Protection class | Level 2 / IP20 |
Applications
DC systems where non-polar wiring simplifies installation and reduces the risk of positive/negative miswiring — PV and DC distribution circuits up to DC 1200V.
