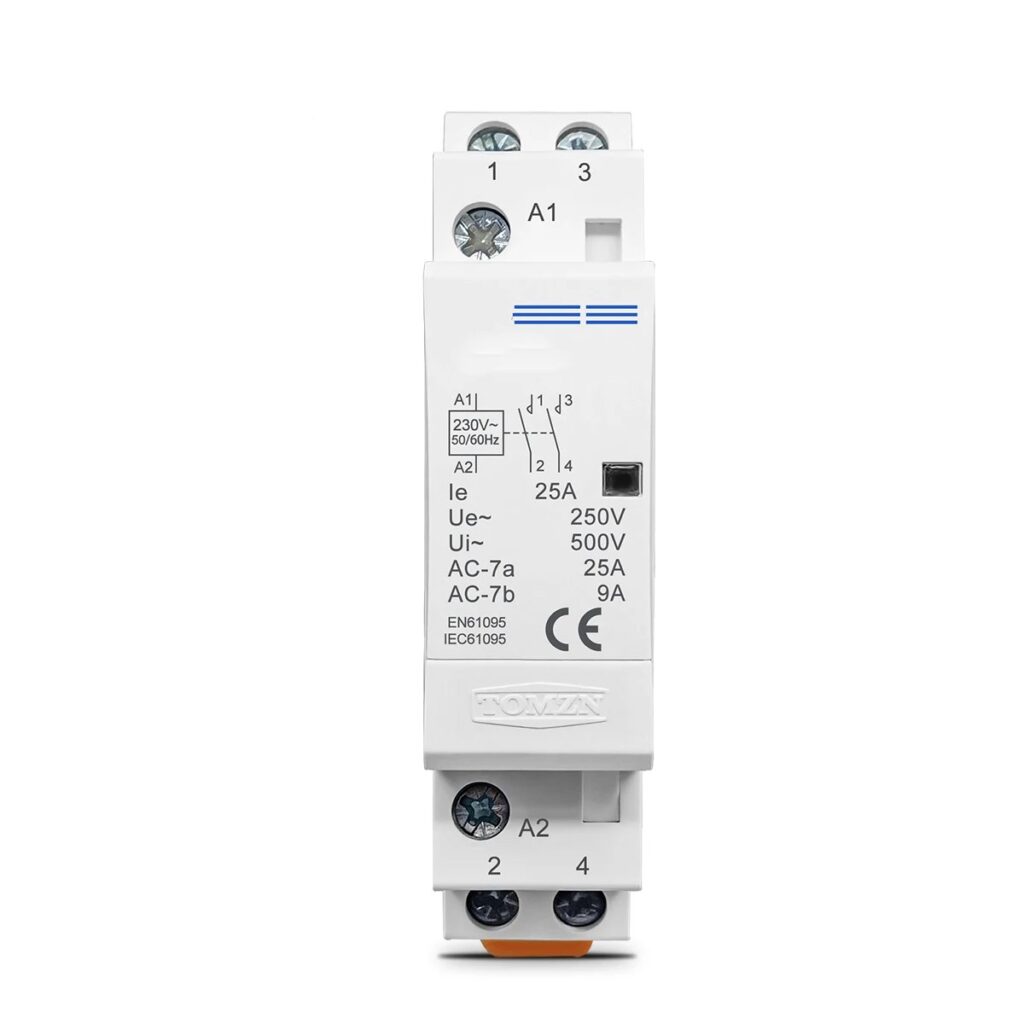

Modular Contactor, 25A 2P

VL-CT-112 Modular Contactor, 25A 2P

The modular contactor is a DIN-rail switching device for remotely controlling lighting, heating, motors and other loads from a control circuit or timer.

Key Features

• TOCT1 house hold AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V .
• Rated operating voltage in AC-7a usage , rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC-7b usage , rated current to 10A.
• Using in breaking capacity below 6kA circuit.
• For distance connect or break the circuit.
• The monthly average minimum temperature in the wettest month should not exceed +25±C and the monthly average maximum relative humidity of this month no more than 90%.
• Besides, the dew on the surface of products caused by temperature change should be taken into consideration.
• Check whether the contactor agrees with the scope of application and the working condition before installation.

Technical Specifications

Applications

Controls lighting groups, heaters, pumps and small motors from timers, thermostats and building-automation systems.

Downloads

Datasheet, type-test report and CAD drawing are being finalized and will be published here shortly. Need them sooner? Request them via the quote form and our team will send them directly.

Packaging & Logistics

Packaging, MOQ, lead time and HS code are being finalized. Need this sooner? Contact us via the Request a Quote form.
