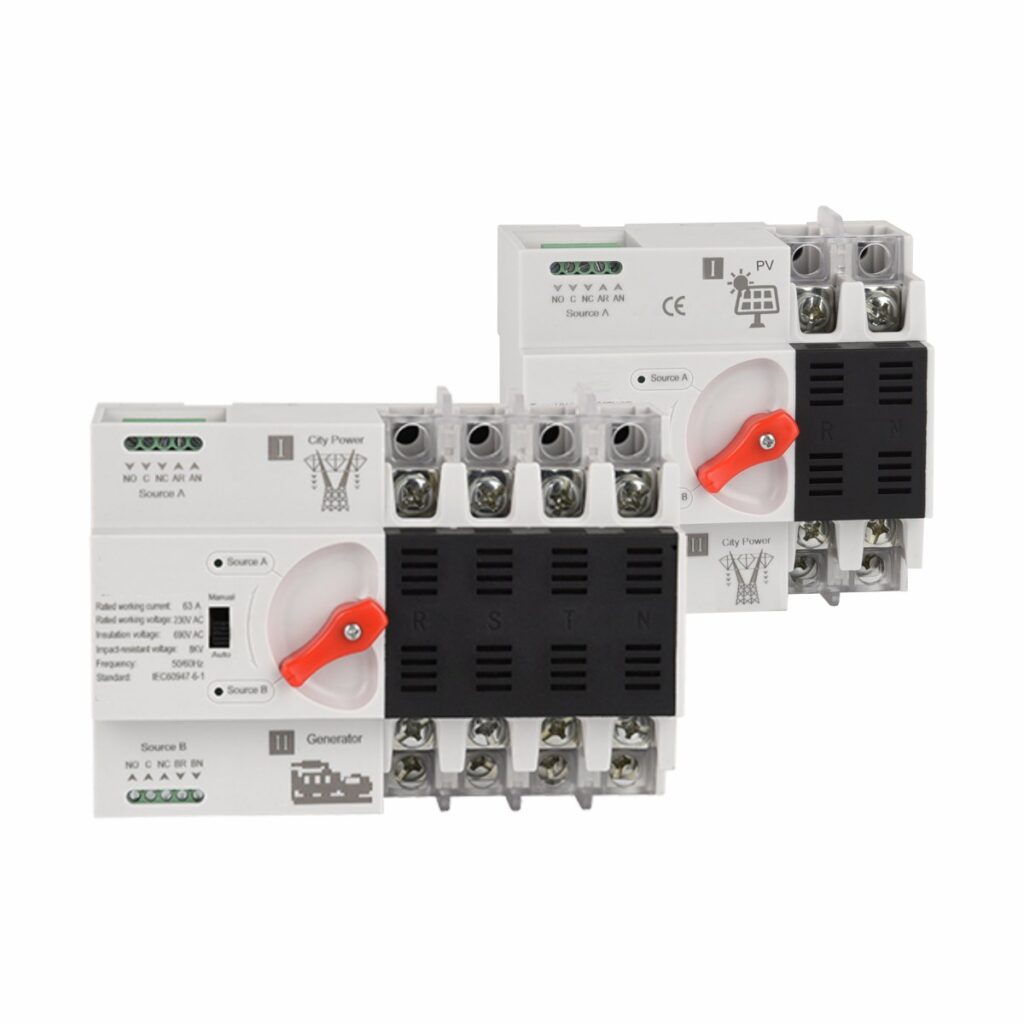

VL-ATS-06 — Residential / Small-Distribution Automatic Transfer Switch
The TVL-ATS-06 dual power automatic transfer switch is designed for emergency power supply systems. It automatically switches between the main and backup power sources when the main power fails, ensuring continuous and reliable power for residential and small distribution applications.
This series is suitable for AC 50/60Hz systems, with a rated voltage up to AC 400V and a rated current range of 25–100A. Featuring a compact structure, fast switching, and reliable performance, it is ideal for applications where power continuity is critical.
The switch can be operated automatically or manually via the controller and complies with IEC 60947-6-1 and IEC 60947-3 standards.
| Parameter | Specification |
|---|---|
| Rated current Ie | 10 / 16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 / 100A |
| Insulation voltage Ui | AC 690V |
| Rated voltage Ue | 2P: AC 230V · 4P: AC 400V |
| Grade | PC — able to make and withstand, not to break short-circuit current |
| Use category | AC-33iB |
| Poles / Weight | 2P: 0.68kg · 4P: 0.91kg |
| Mechanical / Electrical life | 5,000 / 2,000 |
| Rated conditional short-circuit current Iq | 50kA (with SCPD fuse RT16-00-63A) |
| Rated impulse withstand voltage | 8kV |
| Control circuit | AC 220V, 50Hz, 85–110% Us |
| Auxiliary circuit | AC 220V / AC 110V, 50/60Hz |
| Contact / operating / return transfer time, off-time | all < 50ms |
| Temperature range | -5°C to +40°C (24h average ≤35°C) |
