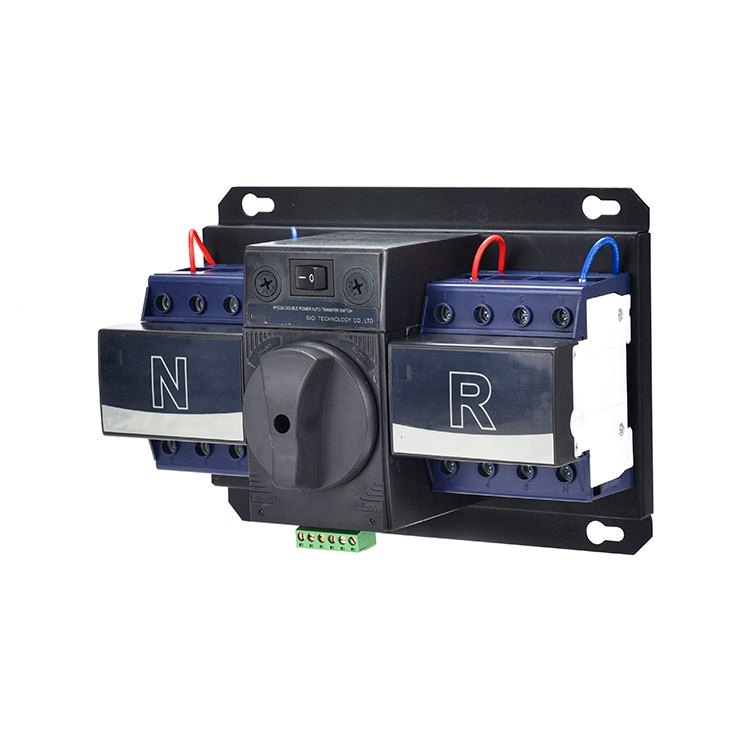

VL-ATS-Q5-63G(H) — Compact Automatic Transfer Switch, 6–63A
The HYCQ5-63G/63H automatic transfer switch is suitable for AC 50/60Hz power systems, with a rated voltage up to AC 230V/400V and a rated current range of 6–63A. It is designed for switching between two power sources in emergency power supply systems, with the load power supply interrupted during the transfer process.
Key Features
- Compact automatic transfer switch for 6A–63A distribution circuits
- 2-pole (230V), 3-pole and 4-pole (400V) configurations
- Rated short-circuit breaking capacity 4kA
- Mechanical life 10,000 operations
- Built to IEC 60947-6-1 / GB/T 14048.11-2016
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated operating current | 6 / 10 / 16 / 20 / 25 / 32 / 40 / 50 / 63A |
| Rated insulation voltage | 500V |
| Rated operating voltage | AC 230V (2P) / 400V (3P & 4P) |
| Rated impulse withstand voltage | 4kV |
| Rated short-circuit breaking capacity | 4kA |
| Conversion time | ≤3s |
| Control supply voltage | AC 220V |
| Mechanical life | 10,000 |
| Use category | AC-33iB |
| Poles / Weight | 2P: 1.5kg · 3P: 1.8kg · 4P: 2kg |
| Standard | IEC 60947-6-1 / GB/T 14048.11-2016 |
Applications
Small-scale emergency power transfer for building sub-distribution and light commercial applications up to 63A.
