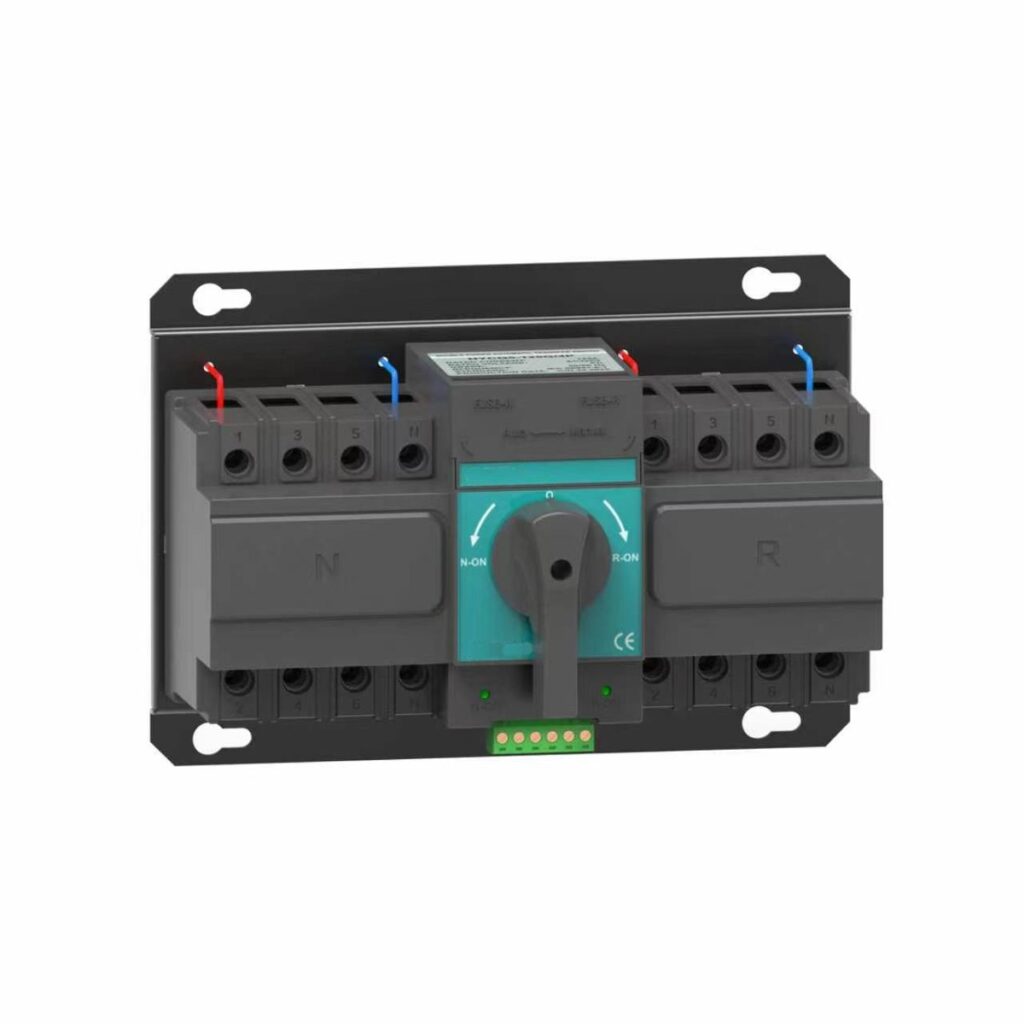

VL-ATS-05 — Compact Automatic Transfer Switch, 16–125A
The VL-ATS-05 automatic transfer switch is suitable for AC 50/60Hz power systems, with a rated voltage up to AC 230V/400V and a rated current range of 16–125A. It is designed for switching between two power sources in emergency power supply systems, with the load power supply interrupted during the transfer process.
| Parameter | Specification |
|---|---|
| Rated operating current | 16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 / 100 / 125A |
| Rated insulation voltage | 500V |
| Rated operating voltage | 230V (2P) / 400V (4P) |
| Rated impulse withstand voltage | 4kV |
| Rated making capacity | 2.5kA |
| Rated short-time withstand current | 1.5kA / 1s |
| Conversion time | ≤3s |
| Control supply voltage | AC 220V |
| Mechanical life | 10,000 |
| Use category | AC-33iB |
| Poles / Weight | 2P: 1.3kg · 4P: 1.8kg |
| Standard | IEC 60947-6-1 / GB/T 14048.11-2016 |
Compact emergency power transfer for buildings — apartment blocks, small commercial premises, and distribution panels needing automatic dual-source switching up to 125A.
Technical documentation for this product (datasheet, type-test report, CAD drawing) is being finalized and will be published here shortly. Need it sooner? Contact us via the Request a Quote form and our team will send it directly.
Packaging details, minimum order quantity, lead time and HS code for this product are being finalized and will be published here shortly. Need this information sooner? Contact us via the Request a Quote form.
Send us your circuit requirements or a competitor part number — our engineers will match the exact model and quote within 24 hours.
