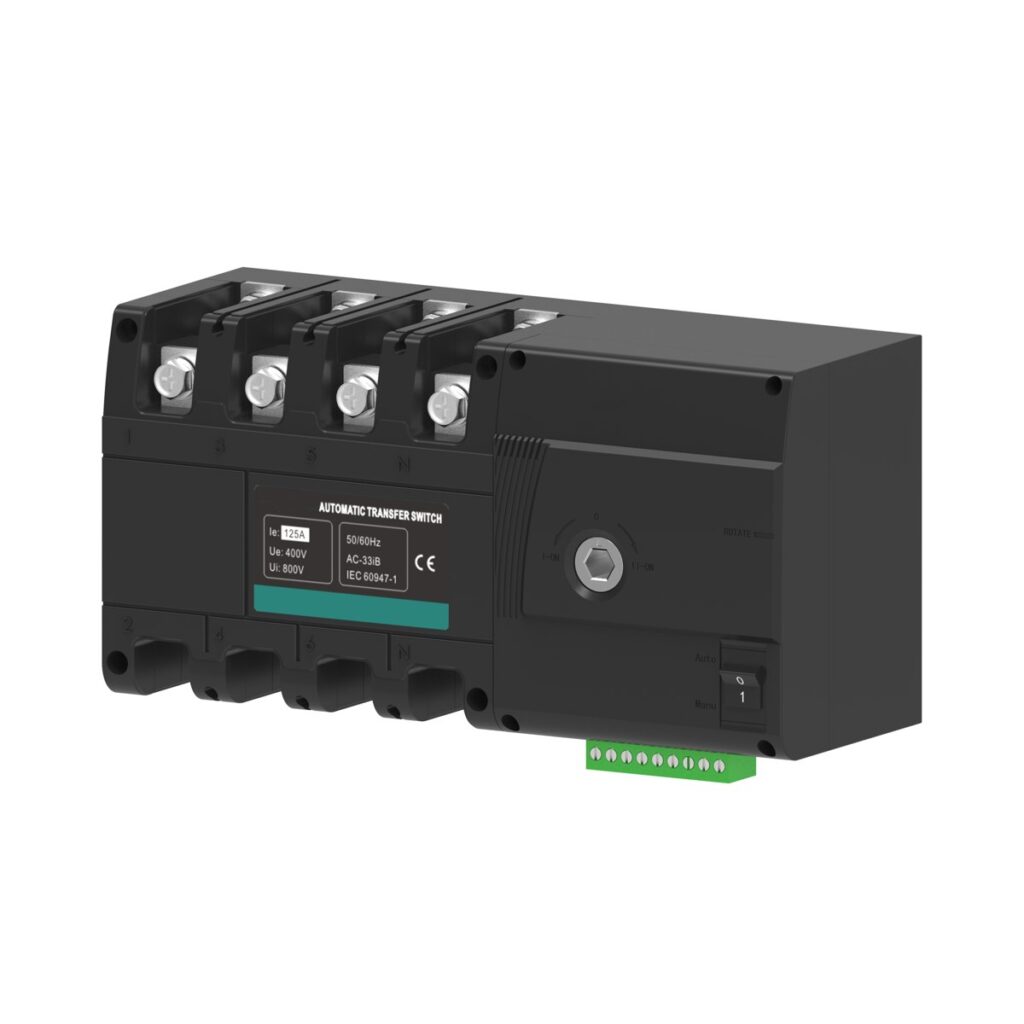

VL-ATS-Q4 — Mid-Frame Automatic Transfer Switch, 125–800A
The HYCQ4-125~800 automatic transfer switch is suitable for AC 50/60Hz systems, with a rated voltage up to AC 400V and a rated current range of 125–800A. It is designed for switching between two power sources in emergency power supply systems, temporarily interrupting the load power during the transfer process.
Key Features
- Rated current range 125A to 800A for mid-size distribution boards
- Multiple rated operating current steps per frame for flexible sizing
- Rated making capacity up to 35kA
- Mechanical life up to 10,000 operations
- Built to IEC 60947-6-1 / GB/T 14048.11-2016
Technical Specifications
| Parameter | 125 | 250 | 400 | 630 | 800 |
|---|---|---|---|---|---|
| Conventional thermal current | 125A | 250A | 400A | 630A | 800A |
| Rated operating current options | 63/80/100/125A | 160/200/250A | 315/600A | 500/630A | 700/800A |
| Rated insulation voltage | 800V | 800V | 800V | 800V | 800V |
| Rated impulse withstand voltage | 8kV | 8kV | 8kV | 8kV | 8kV |
| Rated operating voltage | AC 400V | AC 400V | AC 400V | AC 400V | AC 400V |
| Rated making capacity | 10kA | 25kA | 35kA | 35kA | 35kA |
| Rated short-time withstand (30ms) | 10kA | 15kA | 20kA | 20kA | 20kA |
| Conversion time | ≥5s | ≥5s | ≥5s | ≥5s | ≥5s |
| Mechanical life | 10,000 | 5,500 | 3,500 | 3,500 | 3,500 |
| Weight | 2.2kg | 5.6kg | 18kg | 18.3kg | 18.5kg |
| Use category | AC-33iB |
Applications
Emergency power transfer for mid-size distribution boards in commercial and industrial buildings where 125–800A dual-source switching is required.
