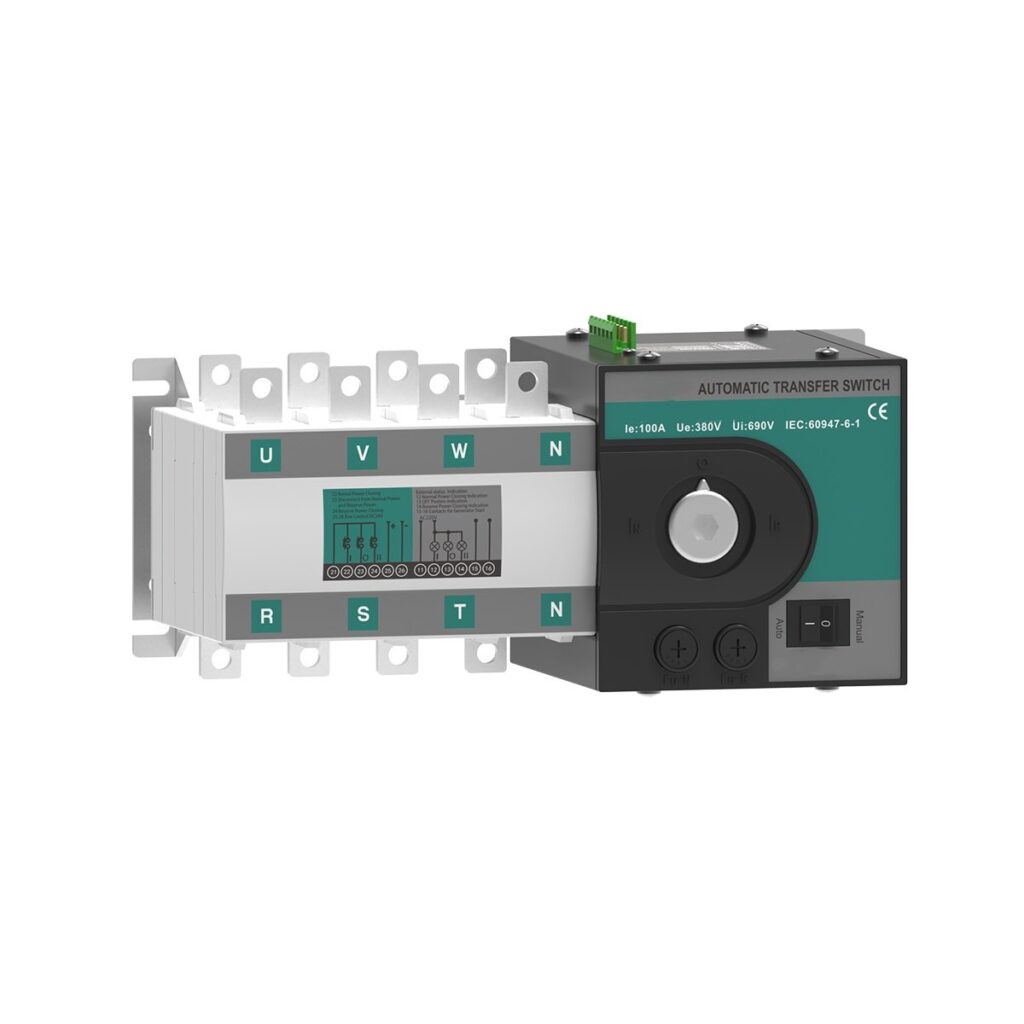

VL-ATS-Q1 — Large-Frame Automatic Transfer Switch, 100–3200A
The HYCQ1-100~3200 automatic transfer switch is suitable for AC 50/60Hz power systems, with a rated voltage up to AC 400V and a rated current range of 100~3200A. It is designed for switching between two power sources in emergency power supply systems, with the load power supply interrupted during the transfer process.
Key Features
- Wide current range from 100A to 3200A in a single series
- Rated insulation voltage 690V, operating voltage up to AC 400V
- Rated making capacity up to 60kA, short-time withstand up to 30kA
- Mechanical life up to 16,000 operations on the smallest frames
- Built to IEC 60947-6-1 / GB/T 14048.11-2016
Technical Specifications
| Parameter | 100–400A | 630–1250A | 1600–3200A |
|---|---|---|---|
| Conventional thermal current | 100 / 160 / 250 / 400A | 630 / 800 / 1000 / 1250A | 1600 / 2000 / 2500 / 3200A |
| Rated insulation voltage | 690V | 690V | 690V |
| Rated impulse withstand voltage | 8kV | 12kV | 12kV |
| Rated operating voltage | AC 400V | AC 400V | AC 400V |
| Rated making capacity | 17kA | 25kA | 50–60kA |
| Rated short-time withstand current (3ms) | 10kA | 15kA | 25–30kA |
| Conversion time | ≥3s–7.5s | ≥3s–7.5s | ≥3s–7.5s |
| Control supply voltage | AC 220V | AC 220V | AC 220V |
| Mechanical life | 16,000 | 3,600–5,000 | 3,000 |
| Use category | AC-31B | AC-31B | AC-31B |
Applications
Large-scale emergency power transfer for industrial and commercial main incoming switchgear, generator back-up systems, and critical facilities requiring dual-source switching up to 3200A.
