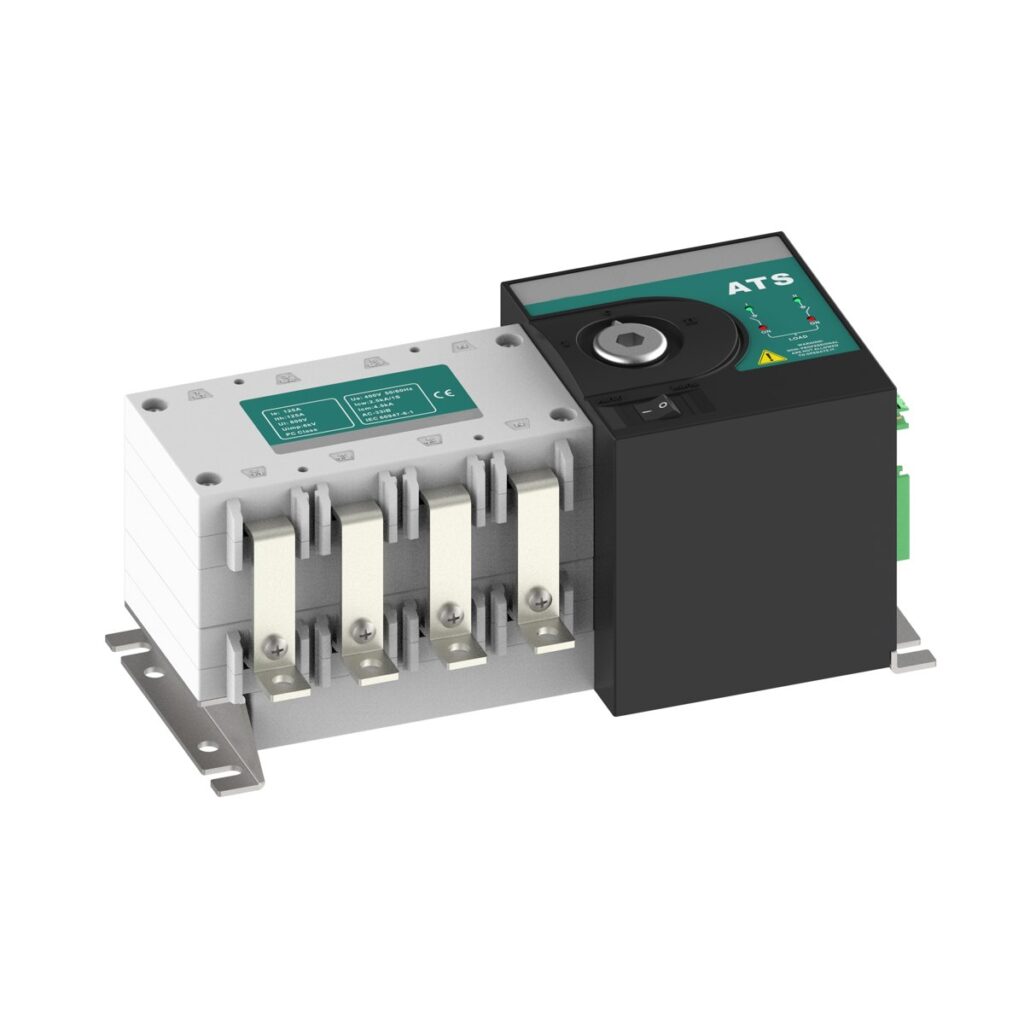

VL-ATS-Q1-125 — Automatic Transfer Switch, 125–800A (Q1 Sub-Line)
The HYCQ1-125~800 automatic transfer switch is suitable for AC 50/60Hz power systems, with a rated voltage up to AC 400V and a rated current range of 125~800A. It is designed for switching between two power sources in emergency power supply systems, with the load power supply interrupted during the transfer process.
Key Features
- 125A–800A sub-line of the Q1 large-frame series
- Finer rated-current stepping per frame for tighter sizing to load
- Rated making capacity up to 40kA
- Mechanical life up to 10,000 operations
- Built to IEC 60947-6-1 / GB/T 14048.11-2016
Technical Specifications
| Parameter | 125 | 200 | 400 | 800 |
|---|---|---|---|---|
| Conventional thermal current | 125A | 200A | 400A | 800A |
| Rated operating current options | 63/80/100/125A | 125/160/200A | 250/315/400A | 500/630/700/800A |
| Rated insulation voltage | 800V | 800V | 800V | 800V |
| Rated impulse withstand voltage | 8kV | 8kV | 8kV | 8kV |
| Rated operating voltage | AC 400V | AC 400V | AC 400V | AC 400V |
| Rated making capacity | 5kA | 10kA | 30kA | 40kA |
| Rated short-time withstand (30ms) | 2.5kA | 7.5kA | 15kA | 20kA |
| Conversion time | ≥1.5s–7.5s | ≥1.5s–7.5s | ≥1.5s–7.5s | ≥1.5s–7.5s |
| Mechanical life | 10,000 | 5,500 | 3,500 | 3,500 |
| Use category | AC-33iB |
Applications
Open-transition emergency power transfer for facilities needing finer current-step selection than the full Q1 frame family, from 125A up to 800A.
